The fragmented opening

The traditional window used to be vertically fragmented in superposed elements so as to specialize the filter of each segment. Normally the highest parts were light collectors with no protection. The intermediate parts had all kinds of filters, and sometimes also lower parts had different filters from the rest. The Canary window [075] and this monumental window in Oporto [166] are extreme examples of that fragmentation.

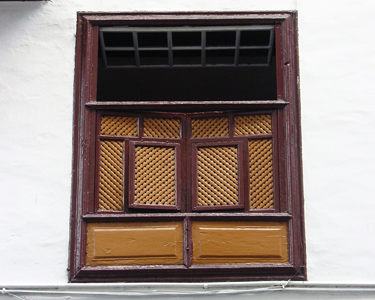

NT6_075_the_fragmented_opening_canarian_filters

Fragmented window: "Canarian filters" [075]

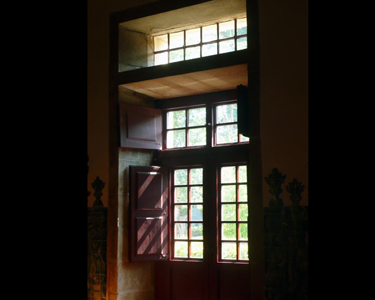

NT6_166_the_fragmented_opening_fanlight_oporto

Fanlight in Oporto [166]





Towards the middle of last century that fragmentation was recovered in projects such as the Eames House [573], the Maisons Jaoul [609] or the Esherick House by Louis Khan [031].

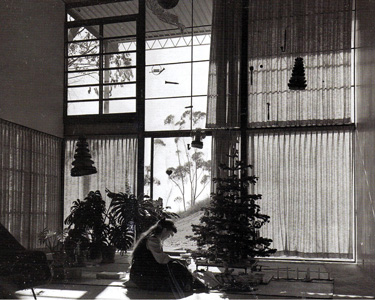

NT6_573_the_fragmented_opening_case%20study%20house%208%20eames%20house%20los%20angeles%20charles%20ray%20eames%20modern%20architecture%20pacific%20palisades%201%20eames-hosue%20-%20dwell

The fragmented Eames House [573]

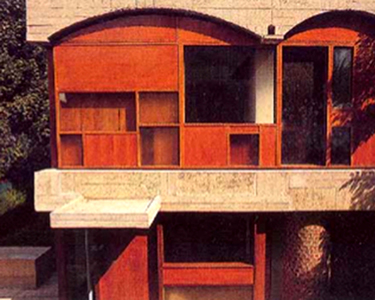

NT6_609_the_fragmented_opening_maison_jaoul_corbusier_neuilly_sur_seine_paris

The best Le Corbusier’s design of openings and protections [609]

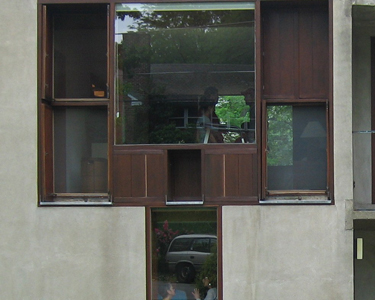

NT6_031_the_fragmented_opening_esherick_kahn

Fragmented windows in Esherick House [031]





Today, this resource is increasingly used to enhance the chances of filters, as in some Murcutt’s works [161] [022] or in different kind of intermediate spaces [566].

NT6_161_the_fragmented_opening_Glenn_Murcutt_Reg_Lark_Wendy_Lewin_Arthur_Yvonne_Boyd_Art_Centre_Riversdale_West_Cambewarra

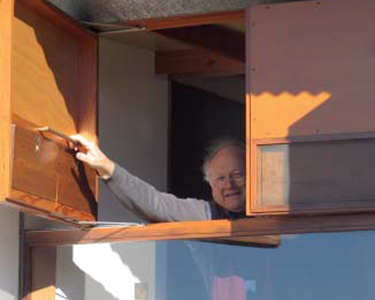

Fragmented window in Riversdale, Glenn Murcutt [161]

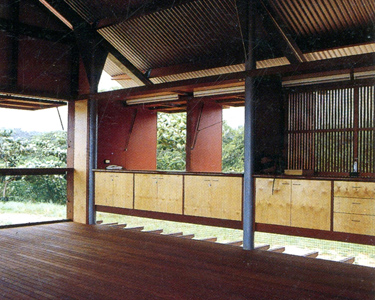

NT6_022_the_fragmented_opening_Marika_Alderton_yirrkala_community_glenn_murcutt

022

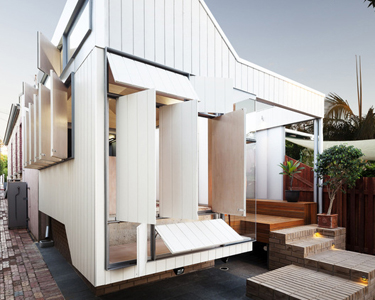

NT6_566_the_fragmented_opening_bellevue_terrace_fremantle_philip_stejskal

A fragmented enclosure [566]



But nowadays, probably the most significant example is in the modern "integrated" light facade of office buildings. Here the segments resulting of vertical and horizontal fragmentation can locate various types of holes or accommodate different climate control systems [084] [131].

NT6_084_the_fragmented_opening_graz_steiermark

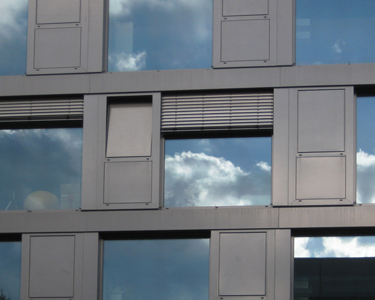

Opaque opening + Fixed glazing = Window [084]

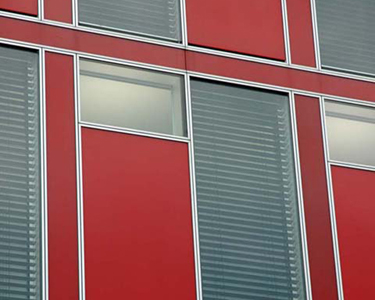

NT6_131_the_fragmented_opening_i-module_dusseldorf_gatermann_schossig_architekten
